PCD Tipped Stop Countersink

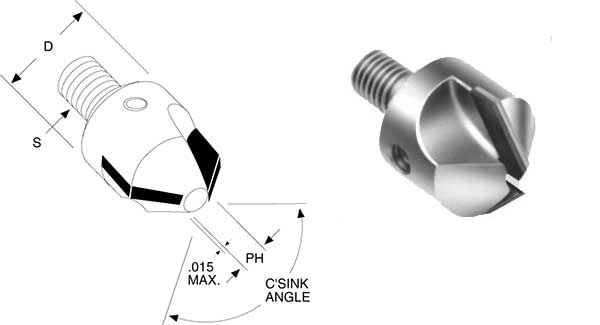

PCD Tipped Stop Countersink – Replaceable pilot, threaded shank
700 PCD SERIES cutters excel in cutting highly abrasive non-ferrous materials in which carbide will not perform satisfactorily, such as graphite epoxy. A high clearance angle with identical lip height results in chatter free, highly economical hole production.
Replaceable pilot construction allow economical replacement of damaged pilots and substitution of various pilot diameters with the same cutter. (For pilot information, see the 755 Series.) Maximum non-cutting diameter is 1/32 larger than pilot hole.
|
700 PCD SERIES
|
|||||
|
TOOL NUMBER
|
“D” BODY DIA.
|
“PH” PILOT HOLE
|
NUMBER FLUTES
|
“S” SHANK SIZE
|
C’SINK ANGLE
|
|
700PCD-100/130
|
3/8
|
5/64
|
2
|
1/4-28
|
100°/130°
|
|
704PCD-100/130
|
1/2
|
1/8
|
2
|
1/4-28
|
100°/130°
|
|
705PCD-100/130
|
5/8
|
1/8
|
2
|
1/4-28
|
100°/130°
|
