Cobalt Removable Pilot

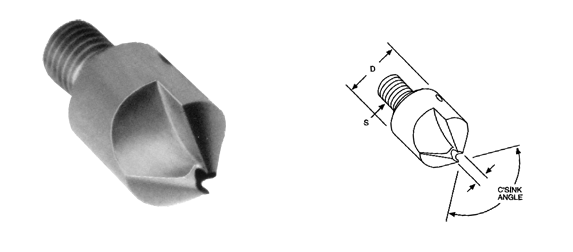

600 & M600 Series
600 and M600 Series countersinks offer the advantage of replacing the pilots as they wear out or hole sizes change. Made from the finest cobalt high speed steel. 100° angle is stocked. Other angles are readily available.
M600 SERIES
| TOOL NUMBER | “D” BODY DIA. | “PH” PILOT HOLE | NUMBER OF FLUTES | “S” SHANK |
| M600 | 10 | 2.00 | 2 | M6 X 1 |
| M602 | 14 | 2.00 | 2 | M8 X 1 |
| M603 | 14 | 2.50 | 2 | M8 X 1 |
| M604 | 14 | 3.50 | 2 | M8 X 1 |
| M605 | 17 | 3.50 | 2 | M8 X 1 |
| M606 | 17 | 5.00 | 2 | M8 X 1 |
| M607 | 21 | 5.00 | 3 | M8 X 1 |
|
600 SERIES
|
||||
| TOOL NUMBER | “D” BODY DIA. | “PH” PILOT HOLE | NUMBER OF FLUTES | “S” SHANK |
| 600 | 3/8 | 5/64 | 2 | 1/4 – 28 |
| 601 | 7/16 | 5/64 | 2 | 1/4 – 28 |
| 602 | 1/2 | 5/64 | 2 | 1/4 – 28 |
| 603 | 1/2 | 3/32 | 2 | 1/4 – 28 |
| 604 | 1/2 | 1/8 | 2 | 1/4 – 28 |
| 605 | 5/8 | 1/8 | 2 | 1/4 – 28 |
