S.A.E. Straight Thread Tube Fitting (MS 16142) Port Contour Cutters, 42R

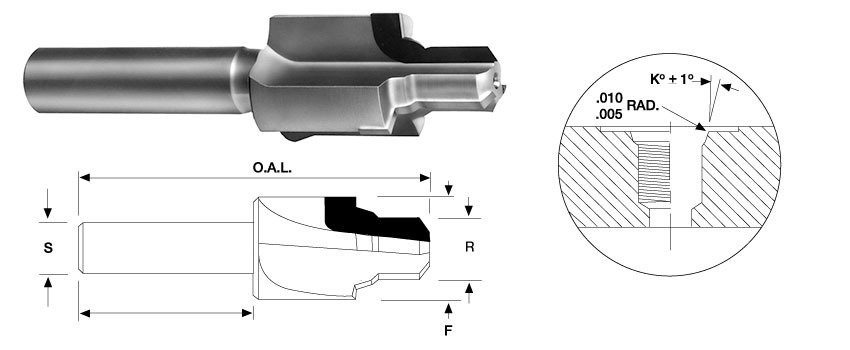

42R Series – Carbide tipped Integral Reamer Pilot
42R SERIES port tools are identical to the 42P Series cutters except that they are manufactured with an integral carbide tipped reamer pilot (rather than a plain pilot) which sizes the minor diameter of the Class 2 thread specification. Modifications of standard tools are readily available. Special cutters, manufactured to customer’s specifications, are given prompt attention.
|
TOOL NUMBER
|
TUBING
O.D. |
THREAD SIZE
|
“R”
REAMER DIAMETER |
“F”
SPOTFACE DIAMETER |
“S”
SHANK DIAMETER |
“K”
ANGLE |
“O.A.L.” OVERALL LENGTH
|
|
42R-2
|
1/8
|
5/16-24
|
.271
|
.692
|
.500
|
12°
|
3-23/32
|
|
42R-3
|
3/16
|
3/8-24
|
.333
|
.770
|
.500
|
12°
|
3-25/32
|
|
42R-4
|
1/4
|
7/16-20
|
.386
|
.848
|
.500
|
12°
|
3-25/32
|
|
42R-5
|
5/16
|
1/2-20
|
.449
|
.926
|
.500
|
12°
|
3-27/32
|
|
42R-6
|
3/8
|
9/16-18
|
.506
|
.989
|
.500
|
12°
|
3-29/32
|
|
42R-8
|
1/2
|
3/4-16
|
.687
|
1.208
|
.500
|
15°
|
3-21/32
|
|
42R-10
|
5/8
|
7/8-14
|
.802
|
1.364
|
.750
|
15°
|
3-31/32
|
|
42R-12
|
3/4
|
1-1/16-12
|
.976
|
1.645
|
.750
|
15°
|
4-1/8
|
|
42R-14
|
7/8
|
1-3/16-12
|
1.097
|
1.785
|
.750
|
15°
|
4-1/8
|
|
42R-16
|
1
|
1-5/16-12
|
1.226
|
1.930
|
.750
|
15°
|
4-1/8
|
|
42R-20*
|
1-1/4
|
1-5/8-12
|
1.538
|
2.290
|
1.000
|
15°
|
4-1/8
|
|
42R-24*
|
1-1/2
|
1-7/8-12
|
1.788
|
2.580
|
1.000
|
15°
|
4-1/8
|
|
42R-32*
|
2
|
2-1/2-12
|
2.414
|
3.500
|
1.000
|
15°
|
4-1/4
|
* Subject to quote
