Dimpling Tools Punch

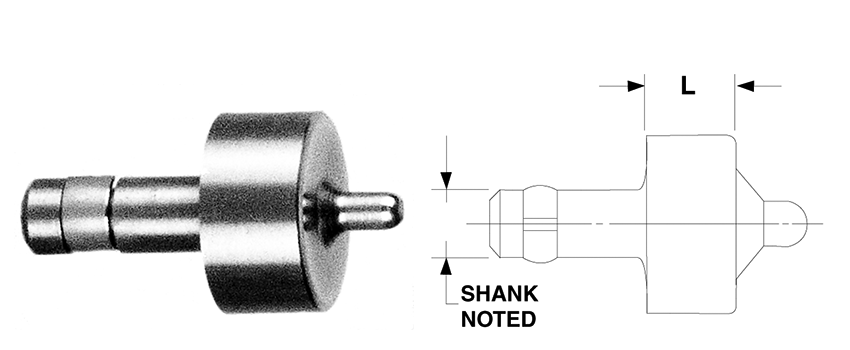

PUNCH
CATALOG NO. CA3000 .187 SHANK DIA.
|
DASH NO.
|
||||
|
L
|
3/32 RIV
|
1/8 RIV
|
5/32 RIV
|
3/16 RIV
|
|
1/4
|
-1
|
-6
|
-11
|
-16
|
|
3/8
|
-2
|
-7
|
-12
|
-17
|
|
1/2
|
-3
|
-8
|
-13
|
-18
|
|
5/8
|
-4
|
-9
|
-14
|
-19
|
|
3/4
|
-5
|
-10
|
-15
|
-20
|
THESE TOOLS ARE DESIGNED FOR THE AN426 – 100 DEGREES FLUSH RIVET, AND USED IN PNEUMATIC AND HAND SQUEEZERS
