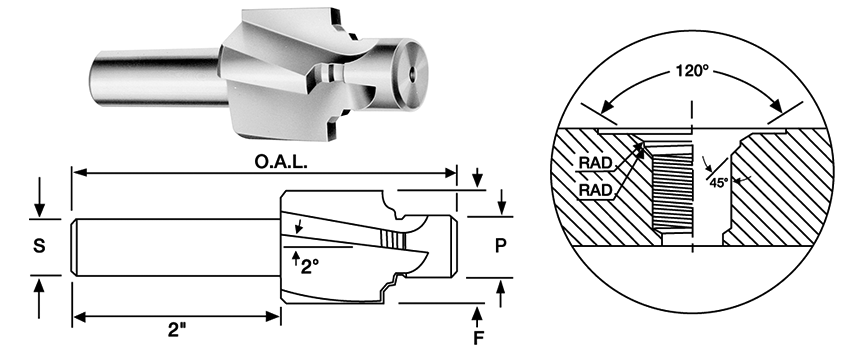

H49P SERIES port tools profile the A.N.D. 10050 or MS 33649 contour. This cutter features the economical, integral plain pilot construction, which makes it desirable for short runs and prototype work.
Made from high speed steel, its short, sturdy construction performs well in highly abrasive materials, and in both ferrous and non-ferrous materials. Like the H49 series, this port tool may be used in a wide range of machinery and equipment not suitable for carbide's high rigidity and high horse power requirements.
All cutting edges are from relieved and all flutes cut the entire form to provide balance, distribution of chip load, maximum tool life between grinds, and ease of sharpening. The flutes are ground into, but do not pass through the integral plain pilot. This provides a better pilot bearing surface and protects the tap drill diameter in the work piece. A slight positive axial rake provides shear action, preventing buildup on the cutting edges and reducing cutting pressures.
Modifications of standard tools are readily available. Special cutters, manufactured to customer's specifications, are given prompt attention.
|
TOOL #
|
TUBING O.D.
|
THREAD SIZE
|
|
"F' SPOTFACE DIAMETER
|
"S" SHANK DIAMETER
|
"O.A.L." OVERALL LENGTH
|
NUMBER OF FLUTES
|
|
A.N.D. 10050
|
M.S. 33649
|
|
H49P-2
|
1/8
|
5/16-24
|
.270
|
.274
|
.742
|
.500
|
3-15/32
|
3
|
|
H49P-3
|
3/16
|
3/8-24
|
.332
|
.338
|
.805
|
.500
|
3-15/32
|
3
|
|
H49P-4
|
1/4
|
7/16-20
|
.385
|
.392
|
.888
|
.500
|
3-15/32
|
4
|
|
H49P-5
|
5/16
|
1/2-20
|
.448
|
.454
|
.950
|
.500
|
3-17/32
|
4
|
|
H49P-6
|
3/8
|
9/16-18
|
.505
|
.511
|
1.012
|
.500
|
3-17/32
|
4
|
|
H49P-7*
|
7/16
|
5/8-18
|
-
|
.574
|
1.105
|
.500
|
3-3/4
|
4
|
|
H49P-8
|
1/2
|
3/4-16
|
.686
|
.692
|
1.240
|
.500
|
3-3/4
|
4
|
|
H49P-9*
|
9/16
|
13/16-16
|
-
|
.755
|
1.302
|
.750
|
4-1/32
|
4
|
|
H49P-10
|
5/8
|
7/8-14
|
.801
|
.809
|
1.415
|
.750
|
4-1/32
|
4
|
|
H49P-11*
|
11/16
|
1-12
|
-
|
.924
|
1.602
|
.750
|
4-9/32
|
4
|
|
H49P-12
|
3/4
|
1-1/16-12
|
.975
|
.986
|
1.665
|
.750
|
4-9/32
|
4
|
|
H49P-14*
|
7/8
|
1-3/16-12
|
-
|
1.111
|
1.790
|
.750
|
4-5/16
|
4
|
|
H49P-16
|
1
|
1-5/16-12
|
1.225
|
1.236
|
1.965
|
.750
|
4-5/16
|
4
|
|
H49P-18*
|
1-1/8
|
1-1/2-12
|
-
|
1.424
|
2.090
|
.750
|
4-11/32
|
4
|
|
H49P-20
|
1-1/4
|
1-5/8-12
|
1.537
|
1.549
|
2.310
|
.750
|
4-11/32
|
4
|
|
H49P-24*
|
1-1/2
|
1-7/8-12
|
1.787
|
1.799
|
2.600
|
.750
|
4-1/2
|
4
|
|
H49P-28*
|
1-3/4
|
2-1/4-12
|
2.162
|
2.174
|
3.050
|
1.000
|
4-3/4
|
4
|
|
H49P-32*
|
2
|
2-1/2-12
|
2.413
|
2.424
|
3.520
|
1.000
|
4-7/8
|
4
|
* Subject to quote
Explanation of pilot sizes for all Craig Port Contour cutters. On plain pilot tools, pilot diameter size is based upon piloting in the proper hole. This hole, in order to meet applicable Mil. Spec. should be sized according to the mean of the min-max tolerance on the minor diameter of the specifications. The common practice of using a standard drill without reaming and/or referring to tap drill charts, cannot be followed since, in most cases, there are no standard drills which produce holes sizes that will meet the Mil. Spec. tolerance on minor diameters.
Please complete the information below and click "submit" to send Special Order Countersinks or to upload your prints. If you have any questions contact one of our sales representatives at 310-322-0614
