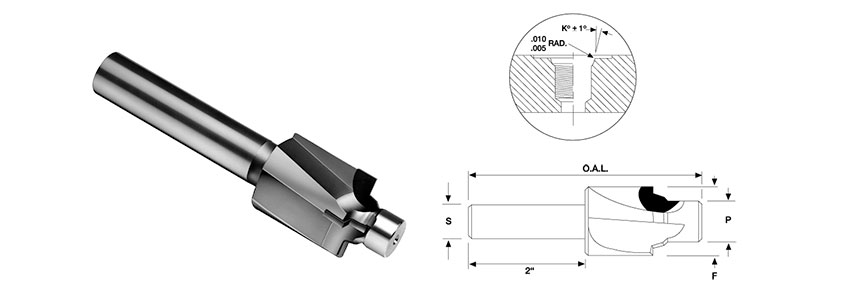

42P SERIES port tools profile the internal O-ring boss and port contour for the S.A.E. straight thread tube fitting (identical to MS 16142).
Modifications of standard tools are readily available. Special cutters, manufactured to customer's specifications, are given prompt attention.
|
TOOL NUMBER
|
TUBING O.D.
|
THREAD SIZE
|
|
"F"
SPOTFACE DIAMETER
|
"S"
SHANK DIAMETER
|
"K"
ANGLE
|
"O.A.L." OVERALL LENGTH
|
|
42P-2
|
1/8
|
5/16-24
|
.270
|
.692
|
.500
|
12°
|
3-23/32
|
|
42P-3
|
3/16
|
3/8-24
|
.332
|
.770
|
.500
|
12°
|
3-25/32
|
|
42P-4
|
1/4
|
7/16-20
|
.385
|
.848
|
.500
|
12°
|
3-25/32
|
|
42P-5
|
5/16
|
1/2-20
|
.448
|
.926
|
.500
|
12°
|
3-27/32
|
|
42P-6
|
3/8
|
9/16-18
|
.505
|
.989
|
.500
|
12°
|
3-29/32
|
|
42P-8
|
1/2
|
3/4-16
|
.686
|
1.208
|
.500
|
15°
|
3-31/32
|
|
42P-10
|
5/8
|
7/8-14
|
.801
|
1.364
|
.750
|
15°
|
3-31/32
|
|
42P-12
|
3/4
|
1-1/16-12
|
.975
|
1.645
|
.750
|
15°
|
4-1/8
|
|
42P-14
|
7/8
|
1-3/16-12
|
1.096
|
1.785
|
.750
|
15°
|
4-1/8
|
|
42P-16
|
1
|
1-5/16-12
|
1.225
|
1.930
|
.750
|
15°
|
4-1/8
|
|
42P-20*
|
1-1/4
|
1-5/8-12
|
1.537
|
2.290
|
1.000
|
15°
|
4-1/8
|
|
42P-24*
|
1-1/2
|
1-7/8-12
|
1.787
|
2.580
|
1.000
|
15°
|
4-1/8
|
|
42P-32*
|
2
|
2-1/2-12
|
2.413
|
3.500
|
1.000
|
15°
|
4-1/4
|
* Subject to quote
