S.A.E. Straight Thread Tube Fitting (MS 16142) Port Contour Cutters, 42R

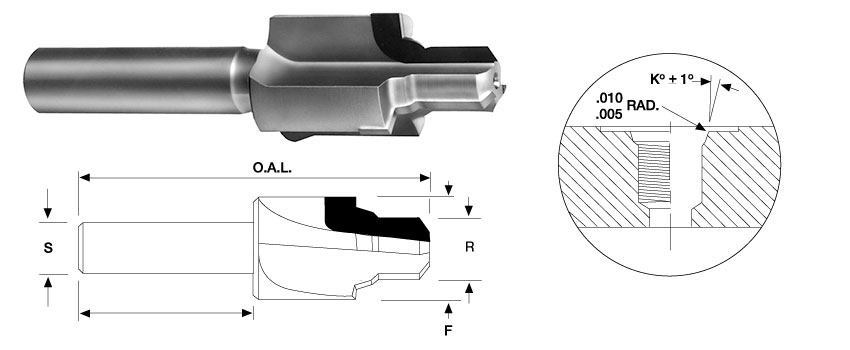

42R Series - Carbide tipped Integral Reamer Pilot

42R SERIES port tools are identical to the 42P Series cutters except that they are manufactured with an integral carbide tipped reamer pilot (rather than a plain pilot) which sizes the minor diameter of the Class 2 thread specification. Modifications of standard tools are readily available. Special cutters, manufactured to customer's specifications, are given prompt attention.

TOOL NUMBER
TUBING
O.D.
THREAD SIZE
"R"
REAMER DIAMETER
"F"
SPOTFACE DIAMETER
"S"
SHANK DIAMETER
"K"
ANGLE
"O.A.L." OVERALL LENGTH
42R-2
1/8
5/16-24
.271
.692
.500
12°
3-23/32
42R-3
3/16
3/8-24
.333
.770
.500
12°
3-25/32
42R-4
1/4
7/16-20
.386
.848
.500
12°
3-25/32
42R-5
5/16
1/2-20
.449
.926
.500
12°
3-27/32
42R-6
3/8
9/16-18
.506
.989
.500
12°
3-29/32
42R-8
1/2
3/4-16
.687
1.208
.500
15°
3-21/32
42R-10
5/8
7/8-14
.802
1.364
.750
15°
3-31/32
42R-12
3/4
1-1/16-12
.976
1.645
.750
15°
4-1/8
42R-14
7/8
1-3/16-12
1.097
1.785
.750
15°
4-1/8
42R-16
1
1-5/16-12
1.226
1.930
.750
15°
4-1/8
42R-20*
1-1/4
1-5/8-12
1.538
2.290
1.000
15°
4-1/8
42R-24*
1-1/2
1-7/8-12
1.788
2.580
1.000
15°
4-1/8
42R-32*
2
2-1/2-12
2.414
3.500
1.000
15°
4-1/4

* Subject to quote

Please complete the information below and click "submit" to send Special Order Countersinks or to upload your prints. If you have any questions contact one of our sales representatives at 310-322-0614
