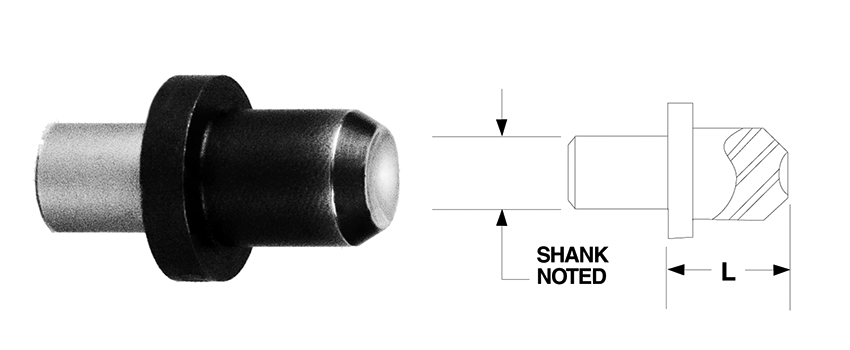

Short Shank Rivet Sets Straight Cupped
STRAIGHT CUPPED
CATALOG NO.
CA1310 .401 SHANK DIA.
CA1310A .498 SHANK DIA.
|
D
|
L
|
DASH NO.
|
|
1/16 AN470
|
21/32
|
-1
|
|
3/32 AN470
|
21/32
|
-2
|
|
1/8 AN470
|
21/32
|
-3
|
|
5/32 AN470
|
21/32
|
-4
|
|
3/16 AN470
|
21/32
|
-5
|
|
1/4 AN470
|
21/32
|
-6
|
ORDER BY CATALOG NO. AND DASH NO.
