700 SERIES carbide countersink cutters excel in cutting highly abrasive materials, and are recommended for countersinking the "difficult to machine" and "exotic" materials in which high speed steel will not perform satisfactorily. Also recommended for any applications where longer tool life is desired.

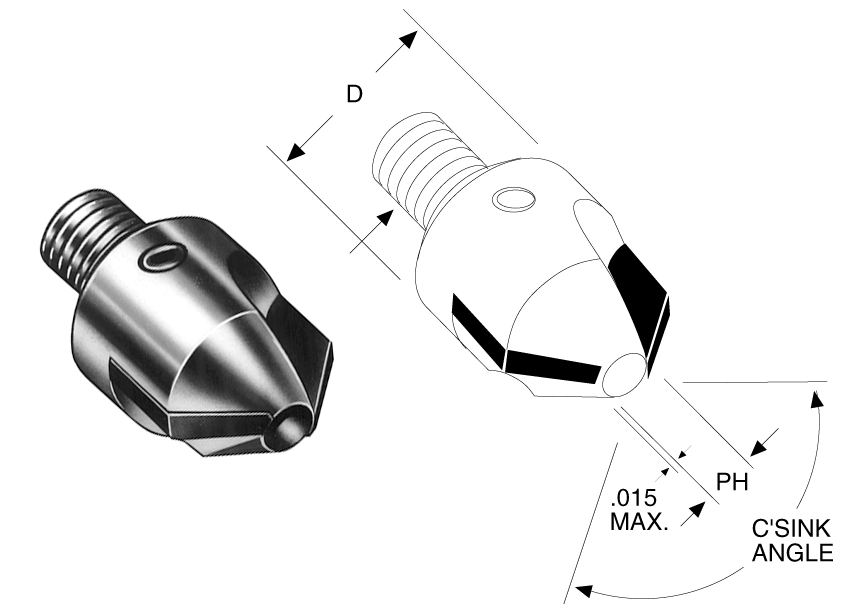

Replaceable pilot construction allows economical replacement of damaged pilots and substitution of various pilot diameters with the same cutter. (For pilot information see the 755 Series.) Maximum non-cutting diameter is 1/32 larger than the pilot hole. Recommend using cutters with pilot holes 1/32 minimum smaller than the desired pilot diameter, see sketch.
Made with heavy carbide tipped cutting edges brazed to tough steel body. Precision ground and form relieved to insure concentricity. May be used on all popular adjustable-stop or micro-stop type countersinking units utilizing a threaded shank drive.
Standard in 100 degree. Other angles subject to quote.
700 SERIES
|
TOOL NUMBER
|
"D" BODY DIA.
|
"PH" PILOT HOLE
|
NUMBER FLUTES
|
"S" SHANK SIZE
|
700
|
3/8
|
5/64
|
2
|
1/4 - 28
|
701
|
7/16
|
5/64
|
2
|
1/4 - 28
|
702
|
1/2
|
5/64
|
2
|
1/4 - 28
|
703
|
1/2
|
3/32
|
2
|
1/4 - 28
|
704
|
1/2
|
1/8
|
2
|
1/4 - 28
|
705
|
5/8
|
1/8
|
2
|
1/4 - 28
|
706
|
5/8
|
3/16
|
2
|
1/4 - 28
|
707A
|
3/4
|
3/16
|
3
|
3/8- 2 4
|
707B
|
3/4
|
3/16
|
3
|
7/16 -20
|
708A
|
7/8
|
3/16
|
3
|
3/8 - 24
|
708B
|
7/8
|
3/16
|
3
|
7/16 - 20
|
709A
|
1
|
3/16
|
3
|
3/8 - 24
|
709B
|
1
|
3/16
|
3
|
7/16 - 20
|
710A
|
1 - 1/8
|
1/4
|
3
|
3/8 - 24
|
710B
|
1 - 1/8
|
1/4
|
3
|
7/16 - 20
|
711A
|
1 - 1/4
|
1/4
|
3
|
3/8 - 24
|
711B
|
1 - 1/4
|
1/4
|
3
|
7/16 - 20
|
M700 SERIES (METRIC)
|
TOOL NUMBER
|
"D" BODY DIA.
|
"PH" PILOT HOLE
|
NUMBER FLUTES
|
"S" SHANK SIZE
|
M700
|
10
|
2.00
|
2
|
M6 x 1
|
M702
|
14
|
2.00
|
2
|
M8 x 1
|
M703
|
14
|
2.50
|
2
|
M8 x 1
|
M704
|
14
|
3.50
|
2
|
M8 x 1
|
M705
|
17
|
3.50
|
2
|
M8 x 1
|
When ordering please specify: Tool number, and included countersink angle.
Example: 701 - 100 degree. For pilot information see 755 Series. Current prices for 100 degree included countersink angles only. Other angles and sizes available, subject to quotation.
Please complete the information below and click "submit" to send Special Order Countersinks or to upload your prints. If you have any questions contact one of our sales representatives at 310-322-0614
