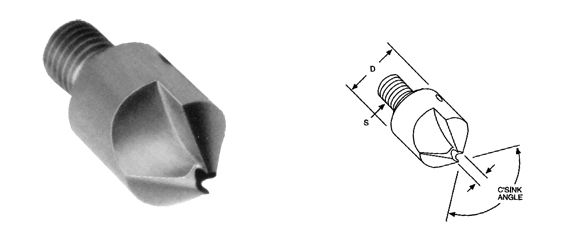

600 and M600 Series countersinks offer the advantage of replacing the pilots as they wear out or hole sizes change. Made from the finest cobalt high speed steel. 100° angle is stocked. Other angles are readily available.
M600 SERIES
| TOOL NUMBER |
"D" BODY DIA. |
"PH" PILOT HOLE |
NUMBER OF FLUTES |
"S" SHANK |
| M600 |
10 |
2.00 |
2 |
M6 X 1 |
| M602 |
14 |
2.00 |
2 |
M8 X 1 |
| M603 |
14 |
2.50 |
2 |
M8 X 1 |
| M604 |
14 |
3.50 |
2 |
M8 X 1 |
| M605 |
17 |
3.50 |
2 |
M8 X 1 |
| M606 |
17 |
5.00 |
2 |
M8 X 1 |
| M607 |
21 |
5.00 |
3 |
M8 X 1 |
|
600 SERIES
|
| TOOL NUMBER |
"D" BODY DIA. |
"PH" PILOT HOLE |
NUMBER OF FLUTES |
"S" SHANK |
| 600 |
3/8 |
5/64 |
2 |
1/4 - 28 |
| 601 |
7/16 |
5/64 |
2 |
1/4 - 28 |
| 602 |
1/2 |
5/64 |
2 |
1/4 - 28 |
| 603 |
1/2 |
3/32 |
2 |
1/4 - 28 |
| 604 |
1/2 |
1/8 |
2 |
1/4 - 28 |
| 605 |
5/8 |
1/8 |
2 |
1/4 - 28 |
