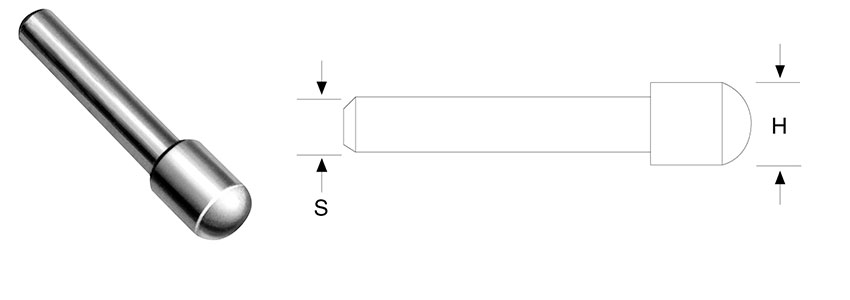

755 SERIES pilots are designed for use with 700 series carbide countersinks and 730 Series carbide counterbores. Made from the finest quality tool steel, heat treated throughout and precision ground to exacting size and concentricity tolerances.
Standard without a shank flat. Tools with flat subject to quote.
|
|
|
TOOL NUMBER
|
PILOT HEAD NOMINAL DIA.
|
|
|
|
|
|
|
|
755-1
|
1/8(.125)
|
*
|
*
|
|
|
|
755-2
|
#30(.128)
|
*
|
*
|
|
|
|
755-3
|
5/32(.156)
|
*
|
*
|
*
|
|
|
755-4
|
#20(.161)
|
*
|
*
|
*
|
|
|
755-5
|
3/16(.187)
|
*
|
*
|
*
|
|
|
755-6
|
#10(.193)
|
*
|
*
|
*
|
|
|
755-7
|
7/32(.218)
|
*
|
*
|
*
|
*
|
|
755-8
|
1/4(.250)
|
*
|
*
|
*
|
*
|
|
755-9
|
"F"(.257)
|
|
*
|
*
|
*
|
|
755-10
|
9/32(.281)
|
|
|
*
|
*
|
|
755-11
|
5/16(.312)
|
|
|
*
|
*
|
|
755-12
|
11/32(.343)
|
|
|
|
*
|
|
755-13
|
3/8(.375)
|
|
|
|
*
|
|
755-14
|
13/32(.406)
|
|
|
|
*
|
|
755-15
|
7/16(.437)
|
|
|
|
*
|
|
755-16
|
15/32(.468)
|
|
|
|
*
|
|
755-17
|
1/2(.500)
|
|
|
|
*
|
|
755-18
|
17/32(.531)
|
|
|
|
*
|
|
755-19
|
9/16(.562)
|
|
|
|
*
|
|
755-20
|
19/32(.593)
|
|
|
|
*
|
|
755-21
|
5/8(.625)
|
|
|
|
*
|
|
M755 SERIES PILOTS (METRIC)
|
|
TOOL NUMBER
|
PILOT HEAD NOMINAL DIA.
|
STANDARD SHANK DIAMETERS
|
|
2.00
|
2.50
|
3.50
|
5.00
|
|
M755-1
|
3.17
|
*
|
*
|
|
|
|
M755-2
|
3.25
|
*
|
*
|
|
|
|
M755-3
|
4.00
|
*
|
*
|
*
|
|
|
M755-4
|
4.07
|
*
|
*
|
*
|
|
|
M755-5
|
4.76
|
*
|
*
|
*
|
|
|
M755-6
|
4.83
|
*
|
*
|
*
|
|
|
M755-7
|
5.00
|
*
|
*
|
*
|
|
|
M755-8
|
5.60
|
*
|
*
|
*
|
|
|
M755-9
|
6.00
|
*
|
*
|
*
|
|
|
M755-10
|
6.35
|
*
|
*
|
*
|
*
|
|
M755-11
|
6.50
|
|
*
|
*
|
*
|
|
M755-12
|
7.00
|
|
|
*
|
*
|
|
M755-13
|
7.80
|
|
|
*
|
*
|
|
M755-14
|
7.92
|
|
|
*
|
*
|
|
M755-15
|
8.00
|
|
|
|
*
|
|
M755-16
|
9.52
|
|
|
|
*
|
|
M755-17
|
10.00
|
|
|
|
*
|
|
M755-18
|
11.11
|
|
|
|
*
|
|
M755-19
|
12.00
|
|
|
|
*
|
|
M755-20
|
12.70
|
|
|
|
*
|
|
M755-21
|
15.87
|
|
|
|
*
|
