High Speed Steel Reverse Spotfacers

190 Series

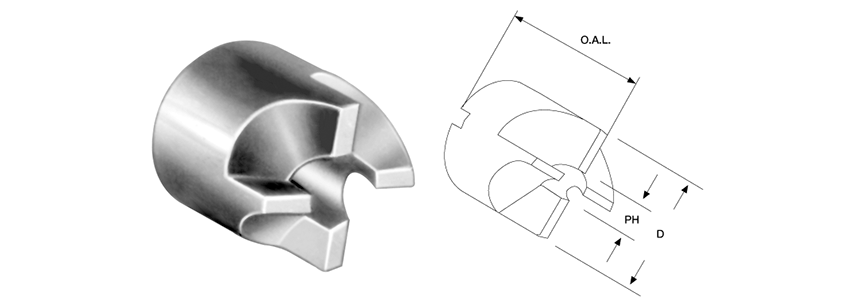

190 SERIES reverse spotfacers are designed for use in restricted areas where conventional spotfacers cannot be utilized. Made from the finest high speed tool steel. Cutters are furnished with 1/32 corner radius. Special sizes subject to quotation.

TOOL NUMBER
"D" CUTTER DIA.
"PH" PILOT HOLE
OAL
PILOT REF. *
PLAIN PILOT
STEP PILOT
190-1J
1/4
3/32
1/2
185-1
186-1
190-1K
1/4
1/8
1/2
185-2
186-2
190-2J
5/16
3/32
1/2
185-1
186-1
190-2K
5/16
1/8
1/2
185-2
186-2
190-2L
5/16
5/32
1/2
185-3
186-3
190-3J
3/8
1/8
1/2
185-2
186-2
190-3K
3/8
5/32
1/2
185-3
186-3
190-3L
3/8
3/16
1/2
185-4
186-4
190-4J
7/16
1/8
1/2
185-2
186-2
190-4K
7/16
5/32
1/2
185-3
186-3
190-4L
7/16
3/16
1/2
185-4
186-4
190-5J
1/2
5/32
1/2
185-3
186-3
190-5K
1/2
3/16
1/2
185-4
186-4
190-5L
1/2
1/4
1/2
185-5
186-5
190-6J
9/16
5/32
5/8
185-3
186-6
190-6K
9/16
3/16
5/8
185-4
186-7
190-6L
9/16
1/4
5/8
185-5
186-8
190-7J
5/8
3/16
5/8
185-4
186-7
190-7K
5/8
1/4
5/8
185-5
186-8
190-7L
5/8
5/16
5/8
185-6
186-9
190-8J
11/16
3/16
5/8
185-4
186-7
190-8K
11/16
1/4
5/8
185-5
186-8
190-8L
11/16
5/16
5/8
185-6
186-9
190-9J
3/4
1/4
5/8
185-5
186-8
190-9K
3/4
5/16
5/8
185-6
186-9
190-9L
3/4
3/8
5/8
185-7
186-10
190-10J
7/8
1/4
5/8
185-5
186-8
190-10K
7/8
5/16
5/8
185-6
186-9
190-10L
7/8
3/8
5/8
185-7
186-10
190-11J
1
5/16
5/8
185-6
186-9
190-11K
1
3/8
5/8
185-7
186-10
190-11L
1
1/2
5/8
185-8
186-11
190-11M
1-1/8
3/8
7/8
185-7
186-14
190-11N
1-1/8
1/2
7/8
185-8
186-17
190-12J
1-1/4
3/8
7/8
185-7
186-14
190-12K
1-1/4
1/2
7/8
185-8
186-17
190-13J†
1-3/8
5/8
7/8
185-9
186-20,21
190-14J†
1-1/2
5/8
7/8
185-9
186-20,21
190-15J†
1-5/8
3/4
1
185-10
186-22,23,24
190-16J†
1-3/4
3/4
1
185-10
186-22,23,24
190-17J†
1-7/8
3/4
1
185-10
186-22,23,24
190-18J†
2
3/4
1
185-10
186-22,23,24

* For pilot information see 185 Series and 186 Series.

† Furnished with "Double Drive" Bayonet Lock.
