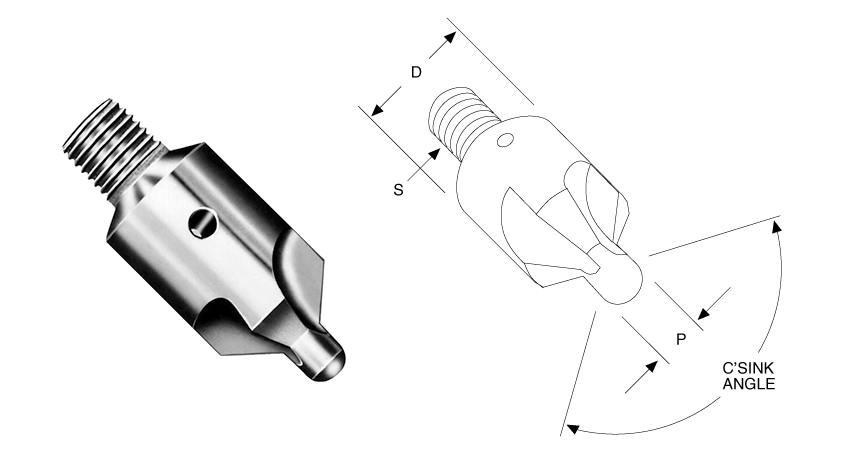

150 SERIES countersink cutters may be used in all popular adjustable-stop or micro-stop type countersinking units utilizing a threaded shank drive. Made from the finest high speed steel and available in cobalt steel. Form relieved to insure concentricity of countersink angle, pilot and seat angle. Standard in three and two flutes. List prices for 100 degree angle only, other angles and sizes are available subject to quotation.
|
150 SERIES STOP COUNTERSINKS
|
|
TOOL NUMBER
|
"D" BODY DIA.
|
"S" SHANK SIZE
|
PILOT RANGE
|
|
|
3/8
|
1/4 - 28
|
3/32 - 3/16
|
|
151
|
7/16
|
1/4 - 28
|
3/32 - 3/16
|
|
152
|
1/2
|
1/4 - 28
|
3/32 - 1/4
|
|
153
|
5/8
|
1/4 - 28
|
5/32 - 5/16
|
|
|
3/4
|
3/8 - 24
|
1/4 - 3/8
|
|
155B
|
3/4
|
7/16 - 20
|
1/4 - 3/8
|
|
156A
|
7/8
|
3/8 - 24
|
1/4 - 7/16
|
|
156B
|
7/8
|
7/16 - 24
|
1/4 - 7/16
|
|
Larger diameters subject to quote
|
|
M150 SERIES STOP COUNTERSINKS (METRIC)
|
|
TOOL NUMBER
|
"D" BODY DIA.
|
"S" SHANK SIZE
|
PILOT RANGE
|
|
M150
|
10
|
M6 x 1
|
2.38 - 4.83
|
|
M152
|
14
|
M8 x 1
|
2.38 - 6.35
|
|
M155
|
17
|
M8 x 1
|
3.96 - 8.00
|
|
M156
|
21
|
M8 x 1
|
6.35 - 10.00
|
|
HOW TO ORDER THREADED SHANK INTEGRAL PILOT COUNTERSINK CUTTERS
|
| When ordering please specify: Tool number, Number of flutes, Material, Included angle and Pilot diameter |
| Example: 150 - 3 - 100 - #40 = 3/8 x 100° x .097 HSS 1/4 - 28 shank, three flute |
| Example: 153 - 2C - 90 - 1/4 = 5/8 x 90 degrees x .249 Cobalt 1/4 - 28 shank, two flute |
Please complete the information below and click "submit" to send Special Order Countersinks or to upload your prints. If you have any questions contact one of our sales representatives at 310-322-0614
