PCD Integral pilot

150 PCD Series

INTEGRAL PILOT POLYCRYSTALLINE COUNTERSINK
HIGHLY ECONOMICAL HOLE PRODUCTION
CONTROLLED FILLET RADIUS
IMPROVED PERFORMANCE

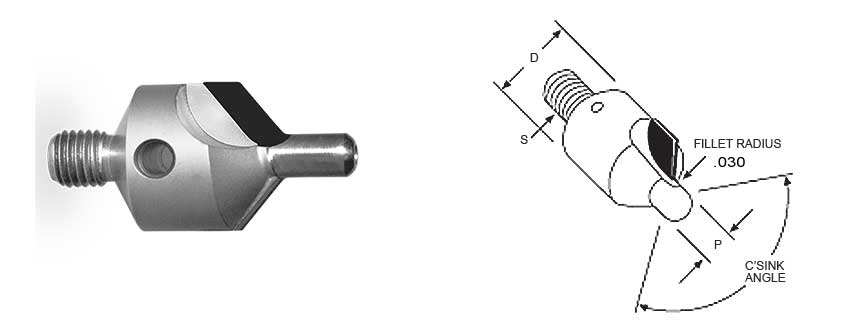

150 PCD SERIES This unique PCD Countersink with the integral pilot and controlled fillet Radius, greatly improves countersinking in advanced composite applications.

150 PCD SERIES
TOOL NUMBER
"D" BODY DIA.
"P" PILOT
NUMBER FLUTES
"S" SHANK SIZE
C'SINK ANGLE
150PCD-100/130
3/8
SPECIFY
2
1/4-28
100°/130°
152PCD-100/130
1/2
SPECIFY
2
1/4-28
100°/130°
153PCD-100/130
5/8
SPECIFY
2
1/4-28
100°/130°


HOW TO ORDER THREADED SHANK INTEGRAL PILOT COUNTERSINK CUTTERS
When ordering please specify: Tool number, Number of flutes, Material, Included angle and Pilot diameter
Example: 152 - 2PCD - 100° - 3/16 = 1/2 x 100 x 3/16, PCD, 1/4-28, 2flute.
Standard pilot diameters 3/32, 1/8, 5/32, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, #40, #30, #21, #11, #10
